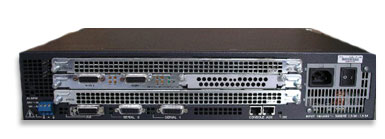

Cisco AS5200 universal access server is a versatile data communications platform that provides the functions of an access server, a router, modems, and terminal adapters (TAs) in a modular chassis. The access server provides the greatest benefit for midsized organizations or service providers that need to centralize processing capabilities for mobile users and telecommuters. The access server is optimized for high-speed modem access and is ideally suited for all traditional dial-up applications, such as access to a host, electronic mail, file transfer, and dial-in access to a LAN. Features - Product Description - Cisco Universal Access Server AS5200 - remote access server
- Device Type - Remote access server
- Enclosure Type - External
- Dimensions (WxDxH) - 17.5 in x 15 in x 3.4 in
- Weight - 25.1 lbs
- Processor - 1 x Motorola 68030 20 MHz RISC
- RAM Installed ( Max ) - ( 32 MB )
- Flash Memory Installed (Max) - ( 24 MB ) - flash
- Data Link Protocol - Ethernet, ISDN
- Network / Transport Protocol - TCP/IP, IPX/SPX, AppleTalk, UDP/IP, X.25, NetBEUI/NetBIOS, L2TP
- Digital Signaling Protocol - ISDN PRI
- Protocols & Specifications - Bell 103, ITU V.21, Bell 212A, ITU V.22, ITU V.22bis, ITU - V.32, ITU V.32bis, ITU V.34, ITU V.90, ITU V.23, k56Flex, ITU V.34bis
- Data Compression Protocol - MNP-5, ITU V.42bis
- Digital Ports Qty - 2
- Analog Ports Qty - 48
- Features - Modular design
- Power - AC 110/220 V ñ 20% ( 50/60 Hz )
