Cisco Aironet 2.4 GHz Articulated Dipole Antenna (AIR-ANT4941)
Previous

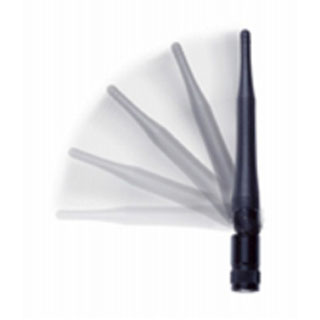

The antenna has an articulated base that can be rotated 360 degrees at the connection point and from 0 to 90 degrees at its knuckle. The articulated base is shown in the following illustration.
Antenna type: Dipole
Operating frequency range: 2402-2495 MHz
2:l VSWR bandwidth: 2385 - 2515 Mhz
Peak gain: 2 dBi
Polarization: Linear, vertical
E-Plane 3-dB beamwidth: 70°
H-Plane 3-dB beamwidth: Omnidirectional
Dimensions: 5.5"
Weight: 0.06 lbs.
Connector type: RP-TNC plug
Environment: Indoor
Operating temperature range: 32°F to 140°F (0°C to 60°C)
Part & Systems
All parts are covered by our 12 Month Bumper-To-Bumper warranty. If you are unsure of the part you require, email our technical department at support@anysystem.com for assistance, as they are eager to help you. If you require a quote or delivery details please send us an email or call us at 201-445-3122.
